300L Conical Vacuum Dryer for Pharmaceutical and Fine Chemical Applications
This 300L conical vacuum dryer offers effective loading volume of 0.5-0.7 m³, with agitator speeds from 5 to 30 rpm. The internal surface roughness is maintained at Ra ≤ 0.4-0.6 μm, ensuring smooth cleaning and minimizing product contamination. Contact parts are available in SS304, SS316L, titanium, Hastelloy, or PTFE lining to match your process requirements. Optional explosion-proof design (ExdIIBT4) is available for flammable solvents.
Key Features

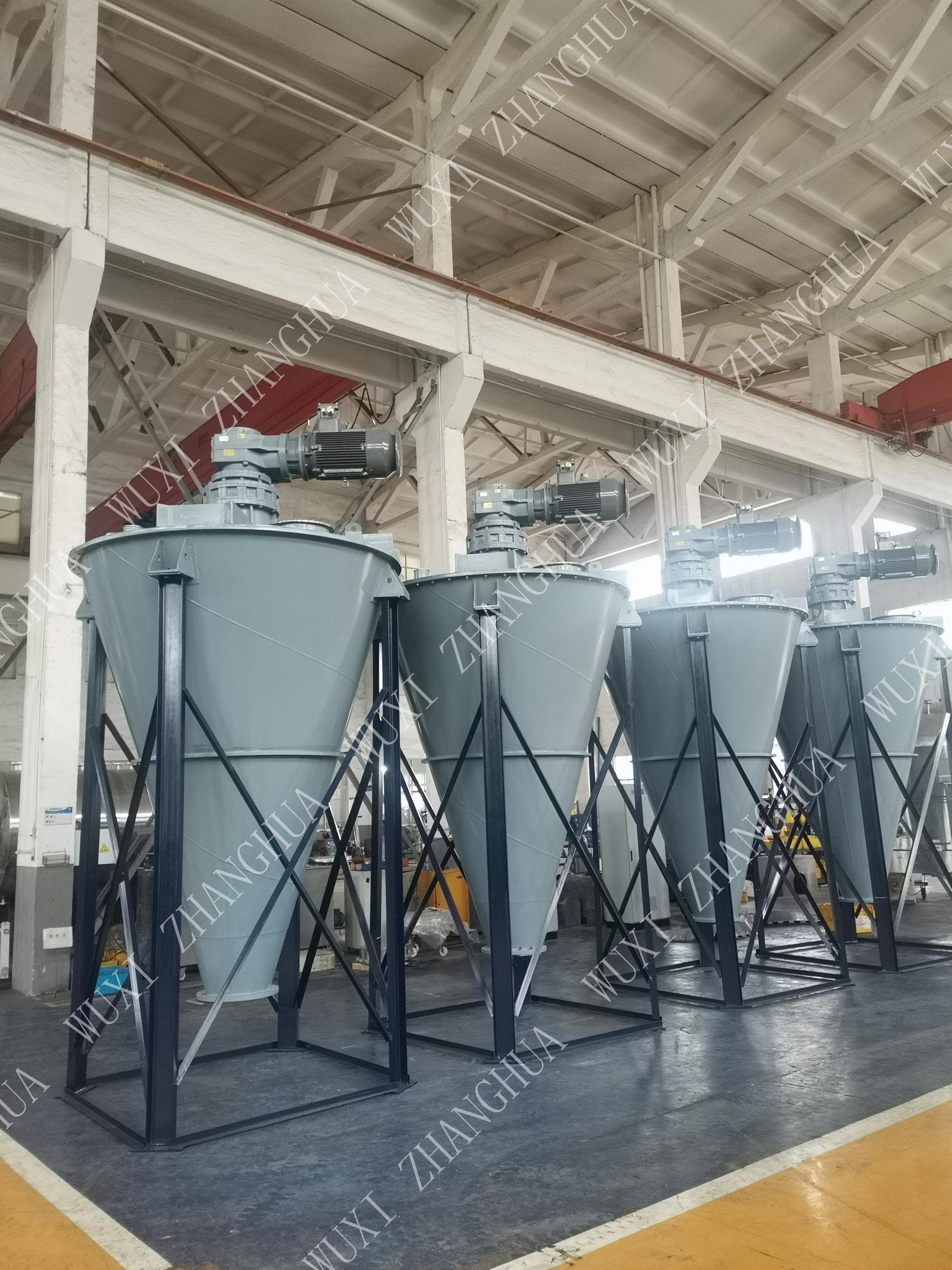

- High Drying Efficiency: Achieves 3-5 times the efficiency of ordinary double-cone dryers, reducing processing time.

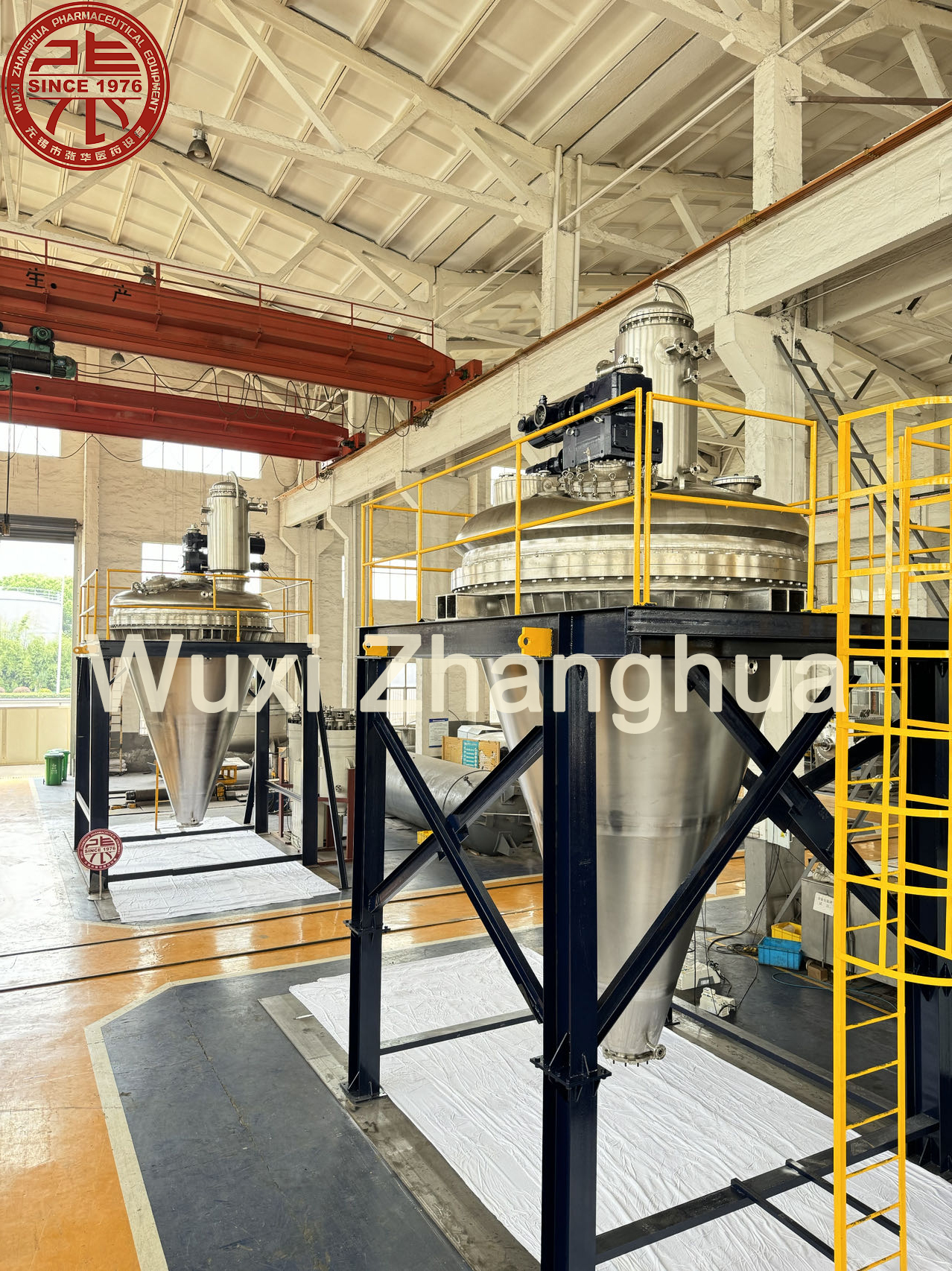

- Uniform Heating: The agitator ensures uniform material heating, preventing hot spots and product degradation.
- Closed Operation: Sealed system prevents dust leakage, maintaining a clean and safe working environment.
- Customizable: Can be customized according to production needs, including material selection and control systems.
- Energy Efficient: Operates stably with low noise and energy consumption, reducing operational costs.
Technical Specifications
| Parameter | Value |
|---|
| Effective Loading Volume | 0.5-0.7 m³ |
| Agitator Rotating Speed | 5-30 rpm |
| Internal Surface Roughness | Ra ≤ 0.4-0.6 μm |
| Explosion-proof Grade | ExdIIBT4 (optional) |
| Material of Contact Parts | SS304, SS316L, Titanium, Hastelloy, PTFE lining |
Models and Options
Available in volumes from 150L to 13,500L. Options include different contact materials, explosion-proof grade, and automatic control system.
Materials and Structure
Contact parts can be made of SS304, SS316L, Titanium, Hastelloy, or PTFE lined. The conical structure with internal agitator facilitates efficient heat transfer and material movement.
Applications
Ideal for pharmaceutical industry, fine chemical industry, new energy/new materials industry, and pesticide manufacturing.
Customization
We customize the dryer based on your specific production needs, including material of construction, control system, and safety features.
FAQ
What is the minimum order quantity?
MOQ is 1 unit.
What are the delivery terms?
Available on FOB basis.
Can the dryer handle explosive materials?
Yes, optional explosion-proof grade ExdIIBT4 is available.
What certifications are available?
We have ASME, PED, ATEX, CE, and MOM certifications for various equipment; please inquire for this model.
How is the surface finish achieved?
Internal surfaces are polished to Ra ≤ 0.4-0.6 μm for easy cleaning.
What industries are suitable?
Pharmaceuticals, fine chemicals, new energy, new materials, and pesticides.
Can we get a pre-shipment test?
Yes, pre-shipment testing is available.
Inquiry Information
Contact Vincent Zhang at vincent_zhang@zhanghuayaoji.com or WhatsApp: +1(805)869-8509 for more details.
