Nauta Conical Dryer for Fine Chemical Industry with Explosion-Proof Option

Name: "Nauta Conical Dryer for Fine Chemical Industry with Explosion-Proof Option"
Rating: 5 (236 reviews)

SKU: 8095102962

Model: 150L-13500L

Product Details

Nauta Conical Dryer for Fine Chemical Industry with Explosion-Proof Option

Product Summary

This Nauta conical dryer is engineered for the fine chemical industry, where handling corrosive and hazardous materials is common. The optional ExdIIBT4 explosion-proof design ensures safe operation with flammable solvents. Available in SS316L, Titanium, and Hastelloy, the dryer supports continuous operation and is suited for corrosive environments.

Key Features

Explosion-proof option – ExdIIBT4 rating for safe processing of flammable solvents.
Corrosion-resistant materials – Constructed from SS316L, Titanium, or Hastelloy for aggressive media.
Effective volume 0.5–0.7 m³ – Suitable for pilot and small-scale production.
Closed vacuum system – Minimizes emissions and ensures operator safety.

Technical Specifications

Parameter	Value
Effective Loading Volume	0.5–0.7 m³
Agitator Rotating Speed	5–30 rpm
Internal Surface Roughness	Ra ≤ 0.4–0.6 μm
Explosion-proof Grade	ExdIIBT4 (optional)

Models and Options

The dryer is available in models from 150L to 13,500L effective volume. Optional explosion-proof, material variations, and PTFE lining are offered.

Materials and Structure

Contact parts can be made of SS304, SS316L, Titanium, Hastelloy, or PTFE lining to resist corrosion. The conical structure with internal agitator ensures uniform mixing.

Applications

Specifically for the fine chemical industry, including production of dyes, pigments, and specialty chemicals, and also suitable for pesticides and new energy materials.

Customization

We provide customized solutions for flammable, explosive, toxic, and corrosive products, with fully sealed and automated options.

Frequently Asked Questions

What is the capacity range?

Effective volume from 150L to 13,500L, with the specific model 150L-13500L offering 0.5-0.7 m³ loading volume.

Why is explosion-proof needed?

When processing flammable solvents, the optional ExdIIBT4 rating meets safety requirements.

Can it handle acidic materials?

Yes, with titanium, Hastelloy, or PTFE lining, it can resist corrosion from acids.

What about cleaning?

The internal surface roughness Ra ≤0.4-0.6 μm facilitates cleaning and reduces product adhesion.

What industries is it for?

Fine chemical, pesticide, and new energy industries, among others.

Is automation available?

Yes, fully automatic control systems can be integrated.

Inquiry Information

To discuss your specific requirements, contact Vincent Zhang at +86 181-1890-2332 or email vincent_zhang@zhanghuayaoji.com. MOQ is 1 unit, with FOB delivery.

Product Images

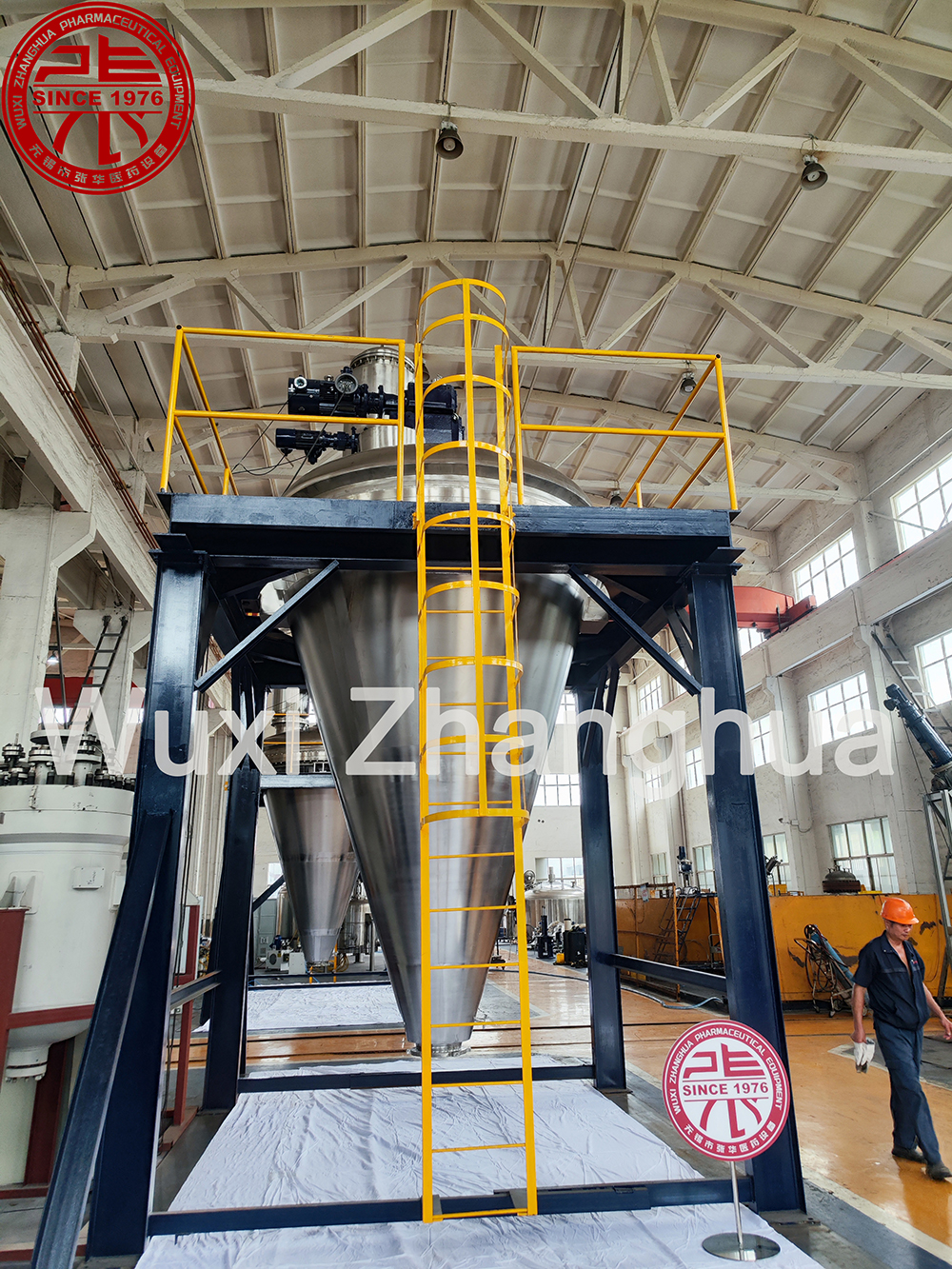

Nauta conical dryer for fine chemical industry

Nauta conical dryer efficient and reliable solution

Nauta conical dryer closed vacuum dust-free
