Non-Destructive Weld Stress Tester for Dissimilar Metal Welds
Product Summary
The PMA-1010 Non-Destructive Weld Stress Tester specializes in evaluating interface stress in dissimilar metal welds, such as aluminum-steel and titanium-steel combinations. It measures stress distribution on each material side, providing critical data for assessing weld quality and integrity in demanding applications.
Key Features
Dissimilar Metal Weld Evaluation: Evaluates interface stress in dissimilar metal welds (e.g., aluminum-steel, titanium-steel).

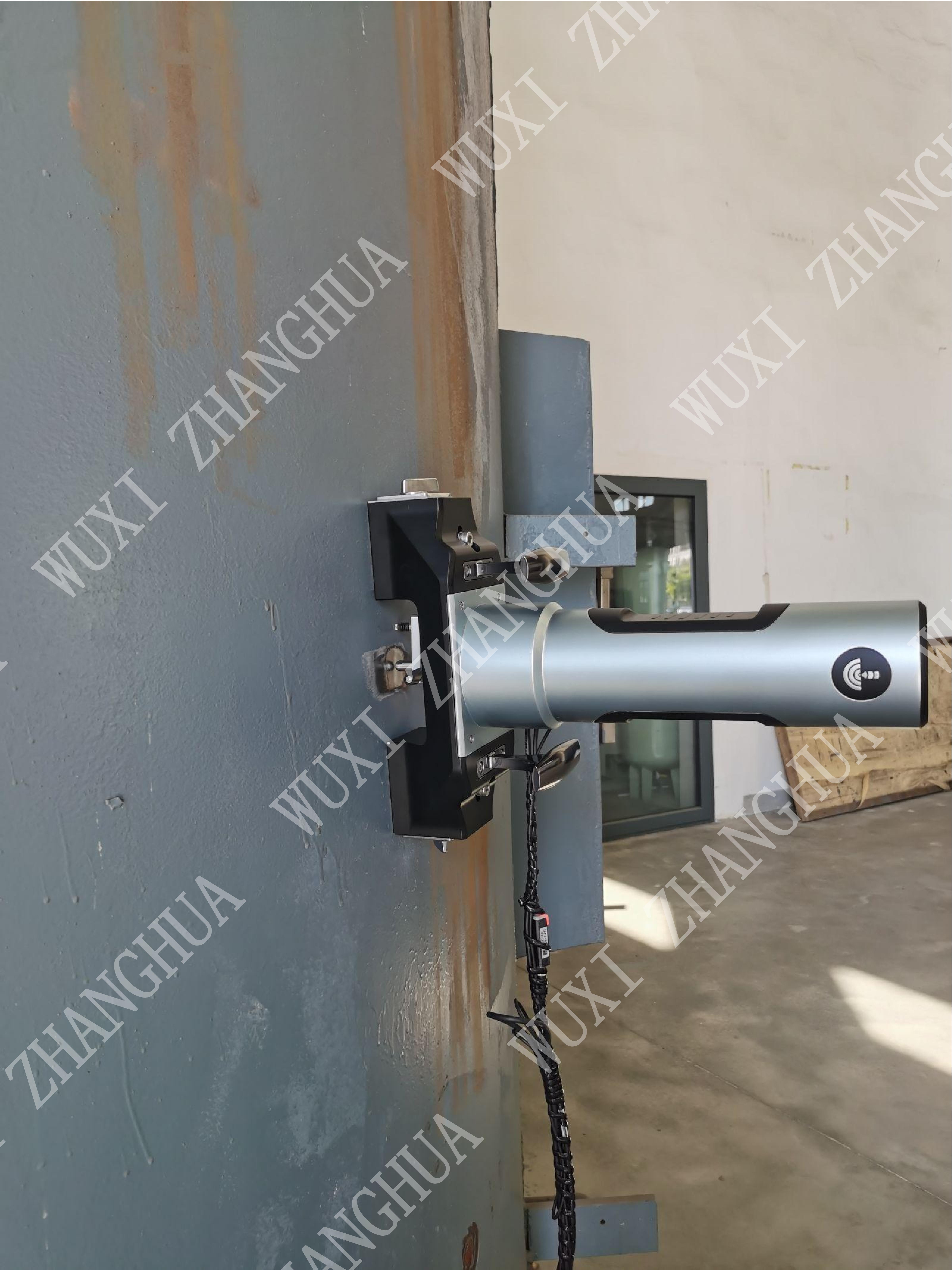

Per-Side Stress Measurement: Measures stress distribution on each material side of dissimilar metal welds.

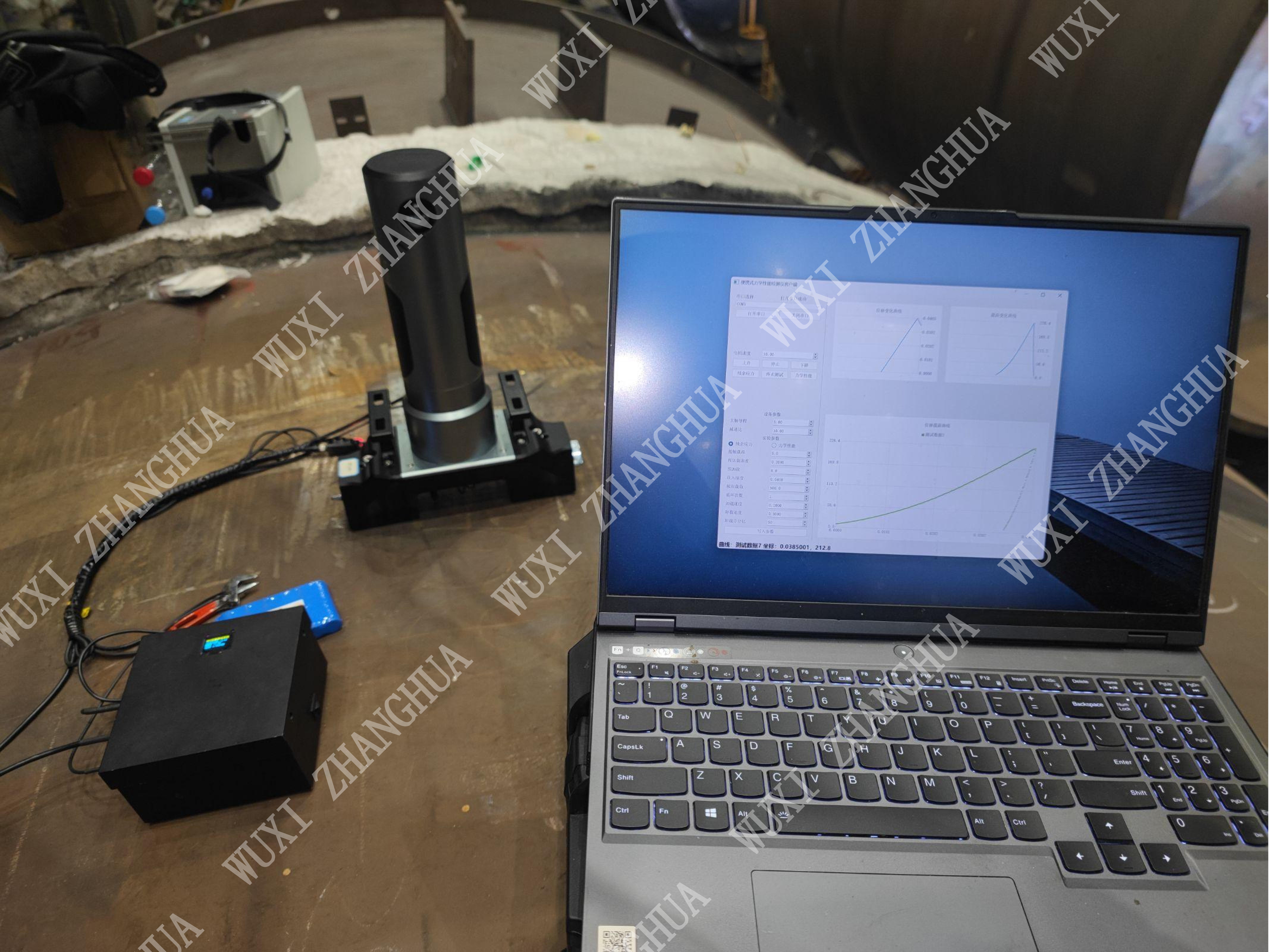

Surface Preparation Not Required: Insensitive to weld reinforcement or undercuts, requiring no complex surface preparation.
Non-Destructive and Safe: Creates indentations of only a few microns, not affecting subsequent NDT, and poses no ionizing radiation risk.
High Accuracy: Data acquisition rate of 100 Hz ensures precise stress data.
Technical Specifications
Parameter
Value
Maximum Load
1000 N (Max)
Actuation Range
25 mm
Loading Speed
0.01~30 mm/min
Data Acquisition Rate
100 Hz
Rated Voltage of Motor
2.1 V
Rated Current of Motor
3 A
Wired/Wireless Power
220 V / 24 V
Testing Range
Macro-scale
Indentation Depth
60~120 μm
Models and Options
Model PMA-1010 standard configuration. Custom fixtures for specific dissimilar metal combinations can be provided upon request.
Materials and Structure
Supports testing on materials like cemented carbide, stainless steel, and aluminum alloy. The equipment's structure is designed to handle different material properties in a single weld.
Applications
Widely used in aerospace industry, energy and power industry, wind power and renewable energy industry, and new energy/new materials industry, where dissimilar metal welds are prevalent.
Case Study
Chemical Plant Application: A chemical plant implemented the PMA-1010 for testing equipment, resulting in stable operation over a decade. The device delivered accurate stress measurements within minutes, contributing to efficient maintenance scheduling.
FAQ
Q: Can it measure stress in dissimilar metal welds? A: Yes, it evaluates interface stress in dissimilar metal welds like aluminum-steel and titanium-steel.
Q: Does it measure stress on each material side? A: Yes, it measures stress distribution on each material side of the dissimilar metal weld.
Q: Is surface preparation required? A: No, it is insensitive to weld reinforcement or undercuts, so no complex surface preparation is needed.
Q: Is it safe for the operator? A: Absolutely, it poses no ionizing radiation risk.
Q: What is the indent size? A: Indentations are only a few microns, not affecting subsequent NDT.
Q: What are the power options? A: It supports wired 220 V and wireless 24 V power sources.
