Non-Destructive Weld Stress Tester for Thin-Wall Welds (3mm)
Product Summary
The PMA-1010 Non-Destructive Weld Stress Tester is ideally suited for thin-wall welds as low as 3mm. It measures residual stress without introducing extra distortion or vibration, ensuring the integrity of delicate structures. Its non-destructive nature and portability make it a reliable choice for on-site testing in various industries.
Key Features
Thin-Wall Compatibility: Suitable for thin-wall welds (3mm) without causing distortion or vibration.

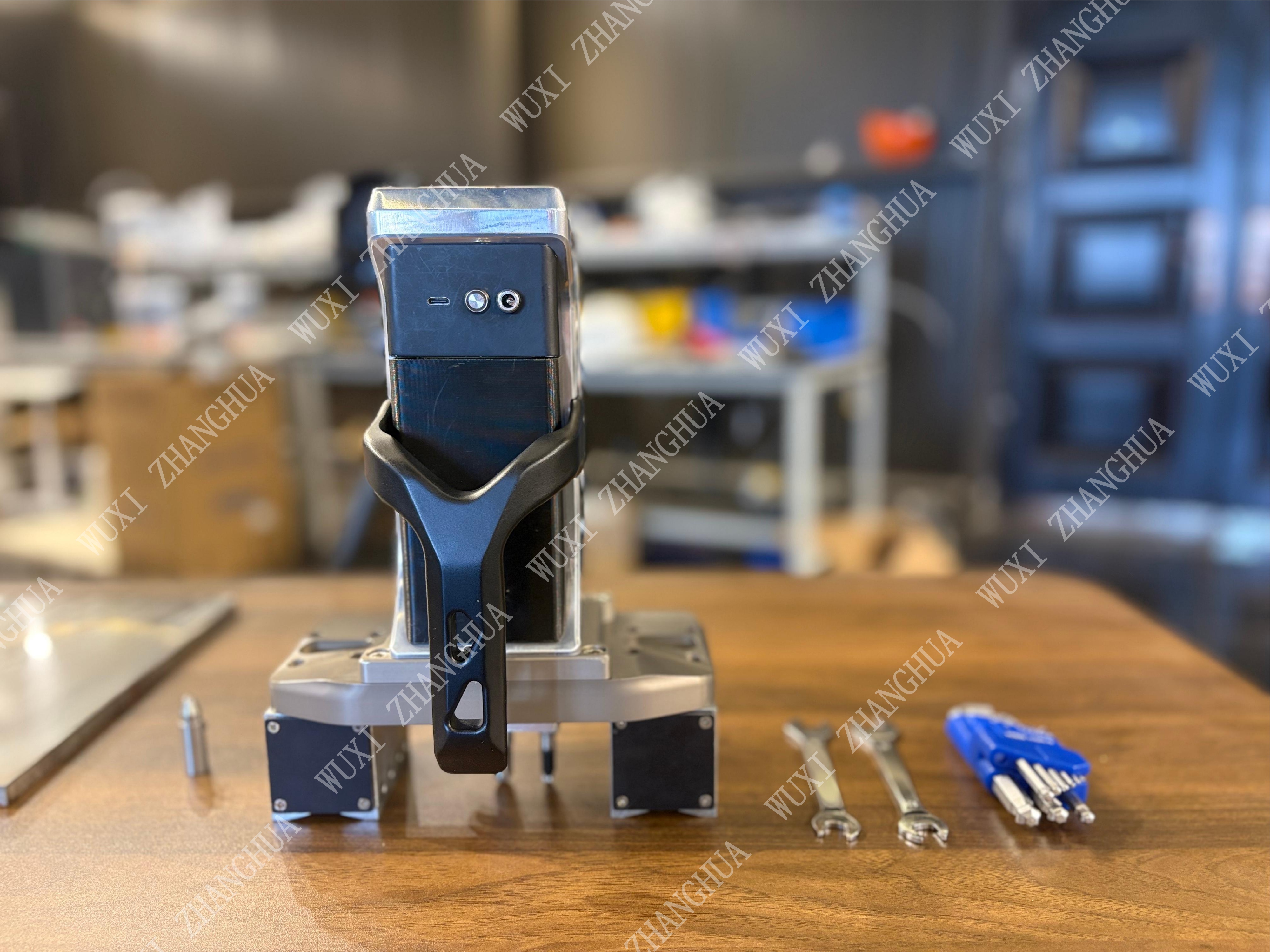

Simultaneous Stress Measurement: Measures longitudinal and transverse residual stress simultaneously for complete weld stress field evaluation.

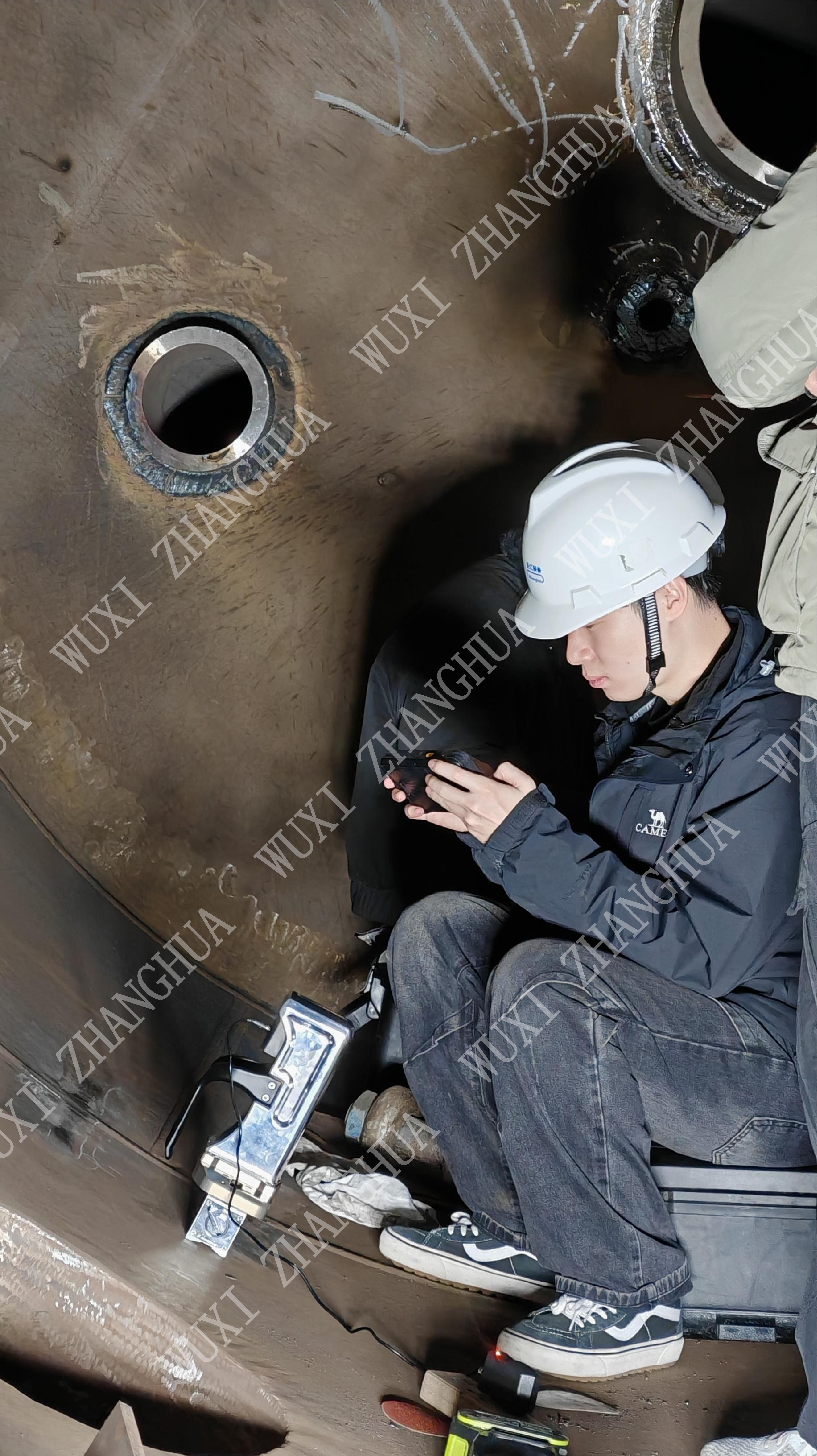

Safe and Non-Destructive: Poses no ionizing radiation risk, completely safe for operators and the environment.
High Precision: Indentation depth of 60~120 μm provides accurate micro-level measurements.

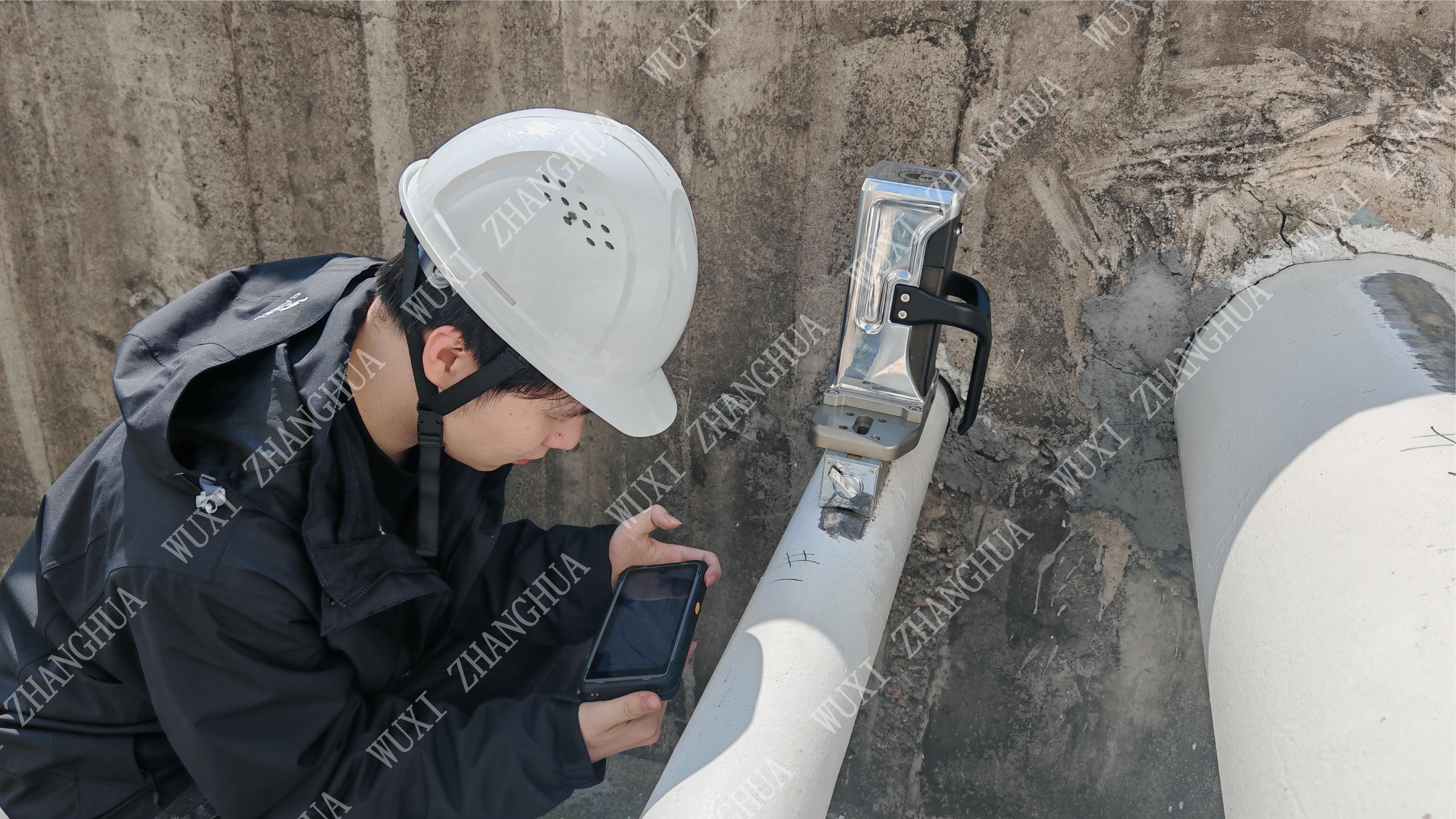

Portable Design: Portable and one-person operable, ideal for complex welding sites.
Technical Specifications
Parameter
Value
Maximum Load
1000 N (Max)
Actuation Range
25 mm
Loading Speed
0.01~30 mm/min
Data Acquisition Rate
100 Hz
Rated Voltage of Motor
2.1 V
Rated Current of Motor
3 A
Wired/Wireless Power
220 V / 24 V
Testing Range
Macro-scale
Indentation Depth
60~120 μm
Models and Options
Model PMA-1010 standard configuration. Optional fixtures for different thin-wall geometries are available upon request.
Materials and Structure
Designed to test materials such as cemented carbide, stainless steel, and aluminum alloy. The device structure is robust yet lightweight for field use.
Applications
Particularly beneficial for aerospace industry, energy and power industry, wind power and renewable energy industry, and fine chemical industry, where thin-wall welds are common and structural integrity is critical.
Case Study
Special Inspection Institute: A special inspection institute used the PMA-1010 to test special equipment, achieving stable operation over 10 years. The instrument provided fast and accurate results within minutes, ensuring safety and reliability.
FAQ
Q: Can the tester handle thin-wall welds as thin as 3mm? A: Yes, the PMA-1010 is suitable for thin-wall welds down to 3mm, without introducing extra distortion or vibration.
Q: Does it measure both longitudinal and transverse stress? A: Yes, it simultaneously measures longitudinal and transverse residual stress for a complete stress field evaluation.
Q: Is it safe to use? A: Absolutely, it poses no ionizing radiation risk, making it safe for operators and the environment.
Q: What is the indentation depth? A: The indentation depth ranges from 60 to 120 μm, ensuring minimal impact on the material.
Q: Can it be used for on-site testing? A: Yes, its portable and one-person operable design makes it ideal for on-site applications.
Q: Which materials can be tested? A: It is compatible with cemented carbide, stainless steel, and aluminum alloy.
