Nondestructive Indentation Tester for Petrochemical Plant Asset Integrity

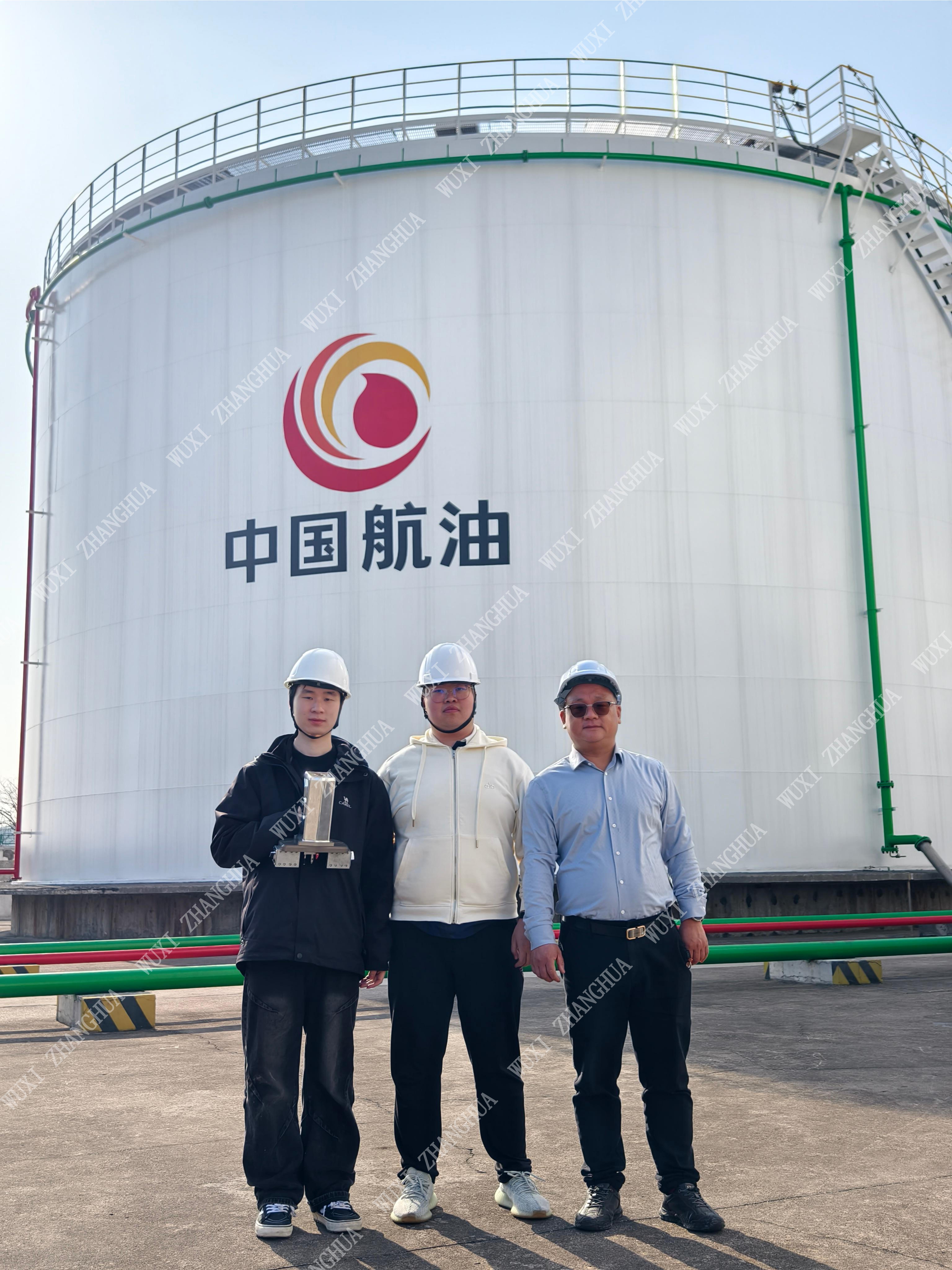

Indentation tester used in petrochemical plant asset integrity assessment

This portable nondestructive indentation tester (Model PMT-1000) is specifically applied in the petrochemical industry to assess in-service equipment integrity without interrupting operations. It provides rapid, accurate measurements of mechanical properties, supporting safety assessments and life extension decisions.

Key Features

On-site integrity assessment: Ideal for periodic inspection of pressure vessels and pipelines in petrochemical plants.
Non-destructive (NDT): Minimal indentation depth of 60–120 μm avoids structural damage.
Rapid results: Data acquisition at 100 Hz enables quick on-site decisions.
Designed for harsh environments: Suitable for high temperature, humidity, dust, vibration, and confined spaces.

Technical Specifications

Parameter	Value
Maximum Load	1000 N (Max)
Actuation Range	25 mm
Loading Speed	0.01–30 mm/min
Data Acquisition Rate	100 Hz
Rated Voltage of Motor	2.1 V
Rated Current of Motor	3 A
Wired/Wireless Power	220 V / 24 V
Testing Range	Macro-scale
Indentation Depth	60–120 μm

Models and Options

Standard model PMT-1000. Optional accessories include specialized fixtures for pipes, vessels, and welds to adapt to various geometries.

Materials and Structure

Indenter made of cemented carbide for hardness, stainless steel for corrosion resistance, and aluminum alloy for lightweight portability. The unit is compact and rugged, designed for field use.

Applications

Periodic inspection for pressure vessels
Online inspection for pressure piping
In-service equipment life assessment
Weld quality testing

Customization

We can customize software for data analysis, fixtures for specific pipe diameters, and power options to suit mobile field operations.

Case Study

Chemical Plant (China): Tested process equipment on-site; unit stable for 10 years.
Special Inspection Institute (China): Used for special equipment testing; stable operation over 10 years.

FAQ

Q: Can this tester be used in explosive atmospheres?
A: It is designed for industrial use, but please confirm specific safety certifications with our sales team for your environment.

Q: What is the typical testing time for one point?
A: With a data acquisition rate of 100 Hz and adjustable speed, a single measurement can be completed within minutes, depending on material and load.

Q: How does the indentation energy difference method work?
A: It measures the energy difference during loading and unloading cycles to derive mechanical properties without destructive sampling.

Q: What maintenance is required?
A: Regular calibration and cleaning of the indenter tip are recommended. Spare parts are available.

Q: Can it be used on curved surfaces?
A: Yes, with optional fixtures designed to accommodate pipes and curved surfaces.
