Pipeline Weld Residual Stress Tester for Girth Weld Axial-Hoop Separation

Quantity:
SKU: 3280834597
Model: PMA-1010

{{ variable.name }}

{{ value.name }}
Product Details

Pipeline Weld Residual Stress Tester for Girth Weld Axial-Hoop Separation

Model: PMA-1010 | Type: Portable Nondestructive Indentation Tester

Product Summary

Model PMA-1010 is a portable nondestructive indentation tester specifically designed for measuring residual stress in pipeline girth welds. It uniquely distinguishes axial from hoop residual stress, facilitating precise stress analysis and helping to locate critical high-stress areas.

Key Features

Axial & Hoop Stress Separation

Distinguishes axial residual stress from hoop residual stress in girth welds.

Circumferential Scanning

Rapidly scans the entire circumference of a girth weld to locate high-stress arc segments.

Weld Pass Mapping

Maps residual stress distribution across root, fill, and cap passes of pipeline welds.

Yield Ratio Warning

Outputs residual stress to yield ratio to warn of weld plastic collapse risk.

Non-Interference Indentation

1mm indentations do not affect PIG passage.

Technical Specifications

ParameterValue
Maximum Load1000 N (Max)
Actuation Range25 mm
Loading Speed0.01~30 mm/min
Data Acquisition Rate100 Hz
Rated Voltage of Motor2.1 V
Rated Current of Motor3 A
Power Supply220 V / 24V (wired/wireless)
Testing RangeMacro-scale
Indentation Depth60~120 μm

Models & Options

Model PMA-1010 is the only model mentioned. Options for different probes or fixtures may be available upon request.

Materials & Structure

Suitable for testing on cemented carbide, stainless steel, and aluminum alloy.

Applications

  • Petrochemical Industry
  • Energy and Power Industry
  • Wind Power and Renewable Energy Industry
  • Aerospace Industry
  • Pharmaceutical Industry
  • Fine Chemical Industry
  • New Energy / New Materials Industry
  • Pesticide Manufacturing Industry

Customization

Custom fixtures for large-diameter pipelines or specific weld geometries can be engineered per client needs.

Case Study

In a 10-year period, a special inspection institute used the tester for testing special equipment, reporting stable operation and rapid, accurate results.

FAQ

Q1: Can this tester separate axial and hoop stresses?

Yes, it can distinguish axial residual stress from hoop residual stress in girth welds.

Q2: How does it locate high-stress areas?

It rapidly scans the entire circumference of a girth weld to locate high-stress arc segments.

Q3: What is the indentation size?

Each indentation is 1mm, which does not affect the passage of pipeline inspection gauges.

Q4: Can it map stress across weld passes?

Yes, it can map residual stress distribution across root, fill, and cap passes.

Q5: What power supply does it need?

It can operate on 220V wired or 24V wireless power.

Q6: What materials can be tested?

Cemented carbide, stainless steel, and aluminum alloy are compatible.

Inquiry Information

Contact Vincent Zhang: vincent_zhang@zhanghuayaoji.com or +86 181-1890-2332.

Product Images

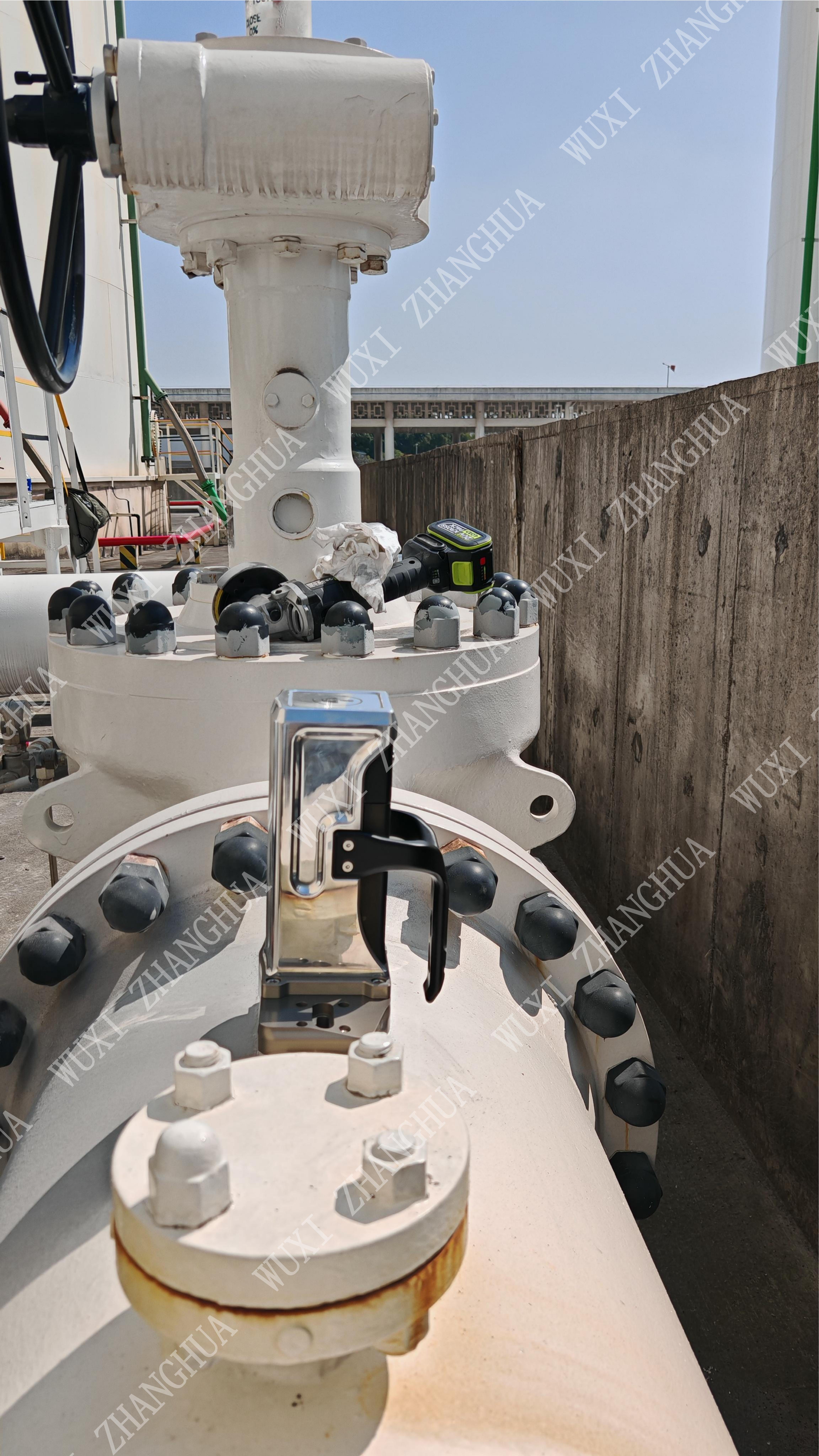

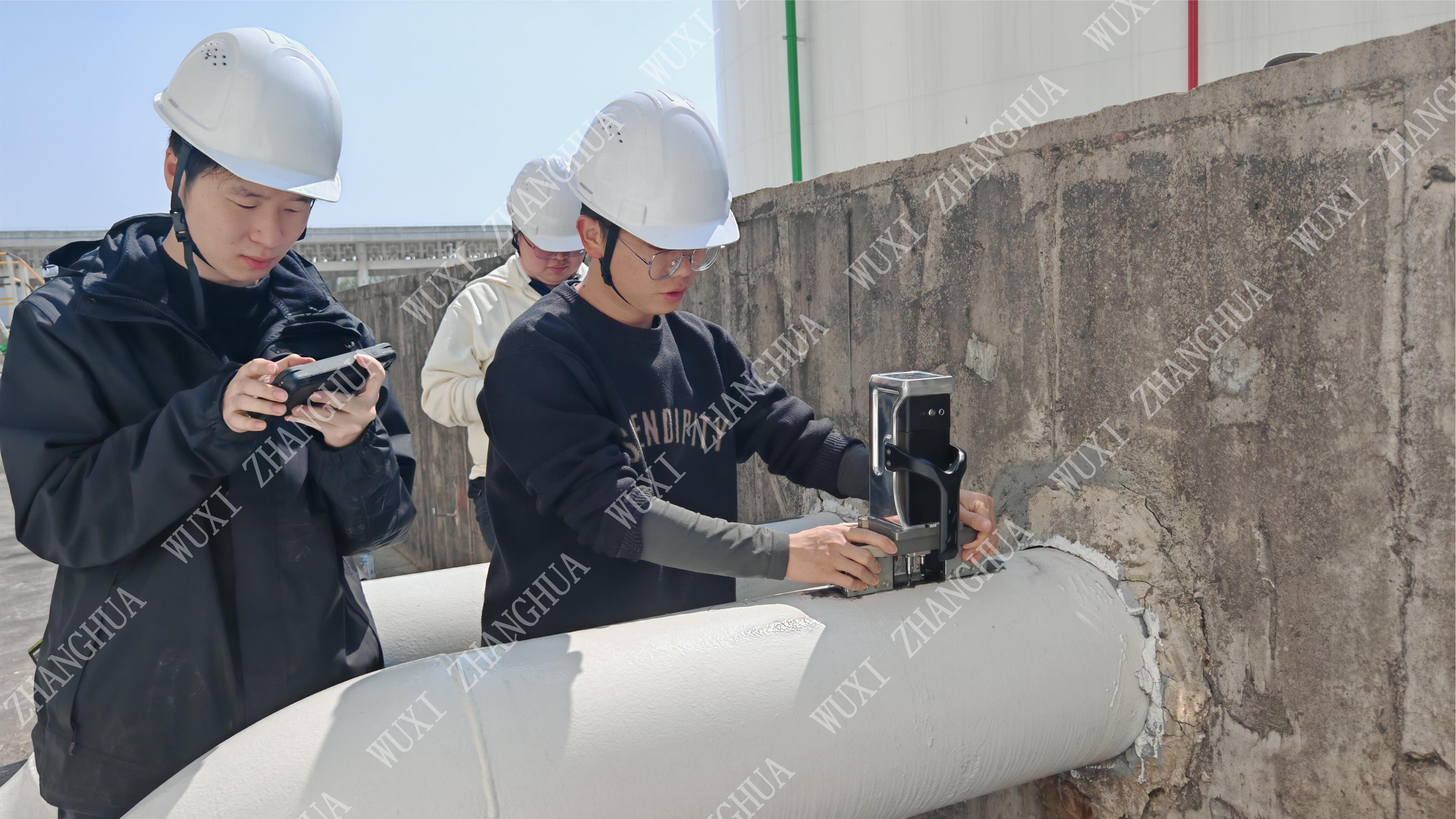

Pipeline Weld Residual Stress Tester axial hoop separation Pipeline Weld Residual Stress Tester circumferential scan
