Portable Micro-Indentation Tester 1000N with 25mm Actuation for On-Site Non-Destructive Testing

Quantity:
SKU: 0783910665
Model: PMA-1010

{{ variable.name }}

{{ value.name }}
Product Details

Portable Micro-Indentation Tester 1000N with 25mm Actuation for On-Site Non-Destructive Testing

URL Slug: portable-micro-indentation-tester-pma-1010

Product Summary

The PMA-1010 is a portable, nondestructive indentation tester engineered for macro-scale mechanical property testing. With a maximum load of 1000 N and an actuation range of 25 mm, it delivers precise indentation depth measurements between 60 and 120 μm. Designed for on-site use, it supports wired/wireless power options (220V/24V) and features a data acquisition rate of 100 Hz, ensuring reliable data for critical components in demanding industries.

Key Features

  • High Load Capacity: Maximum load of 1000 N enables testing of a wide range of metallic materials.
  • Portable Design: Lightweight and small size facilitate easy carrying and on-site operation.
  • Non-Destructive Testing: Indentation depth of 60-120 μm ensures minimal damage to the workpiece.
  • Versatile Power Options: Operates on both 220V and 24V, with wired or wireless connectivity.
  • High-Speed Data Acquisition: 100 Hz sampling rate captures fine variations in material response.

Technical Specifications

ParameterValue
Maximum Load1000 N
Actuation Range25 mm
Loading Speed0.01-30 mm/min
Data Acquisition Rate100 Hz
Motor Rated Voltage2.1 V
Motor Rated Current3 A
Power Supply220V/24V (Wired/Wireless)
Testing RangeMacro-scale
Indentation Depth60-120 μm

Models and Options

Model: PMA-1010. This is the standard portable micro-indentation tester model, suitable for general on-site applications.

Materials and Structure

The tester is designed to test materials including cemented carbide, stainless steel, and aluminum alloy. Its structure includes a motorized actuation system and a portable frame, enabling easy handling in field conditions.

Applications

Ideal for petrochemical industry, energy and power industry, wind power and renewable energy industry, and aerospace industry. It is used for on-site non-destructive testing of mechanical properties of components, such as pressure vessels and pipelines.

Customization

Customization options are available upon request, including specific fixtures for different working conditions. Contact us to discuss your requirements.

FAQ

Q: What is the maximum load of the PMA-1010?

A: The maximum load is 1000 N, suitable for macro-scale testing.

Q: How does the tester ensure non-destructive testing?

A: The indentation depth is limited to 60-120 μm, minimizing surface damage while providing accurate measurements.

Q: Can it be used in the field?

A: Yes, its portable design and 220V/24V power options allow for easy on-site operation.

Q: What materials can be tested?

A: It is suitable for cemented carbide, stainless steel, and aluminum alloy.

Q: What is the data acquisition rate?

A: The rate is 100 Hz, enabling high-resolution data capture.

Q: Does it require professional training to operate?

A: The operation is designed to be simple; however, some training is recommended for optimal use.

Q: Is data storage available for analysis?

A: Yes, the tester has data storage functions for subsequent analysis and traceability.

Inquiry Information

MOQ: 1 unit; Delivery: FOB; Payment: 40/60; Acceptance: Pre-shipment test.

Contact Vincent Zhang: vincent_zhang@zhanghuayaoji.com | +86 181-1890-2332

Product Images

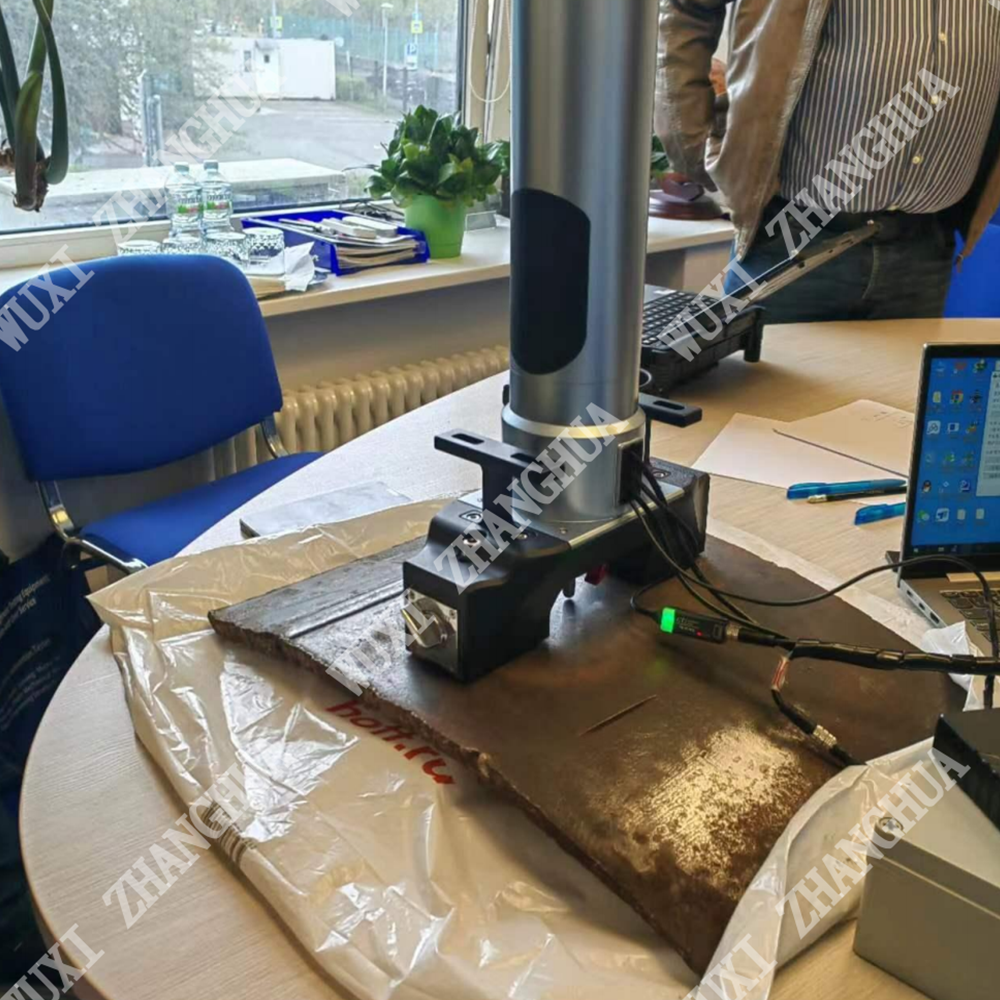

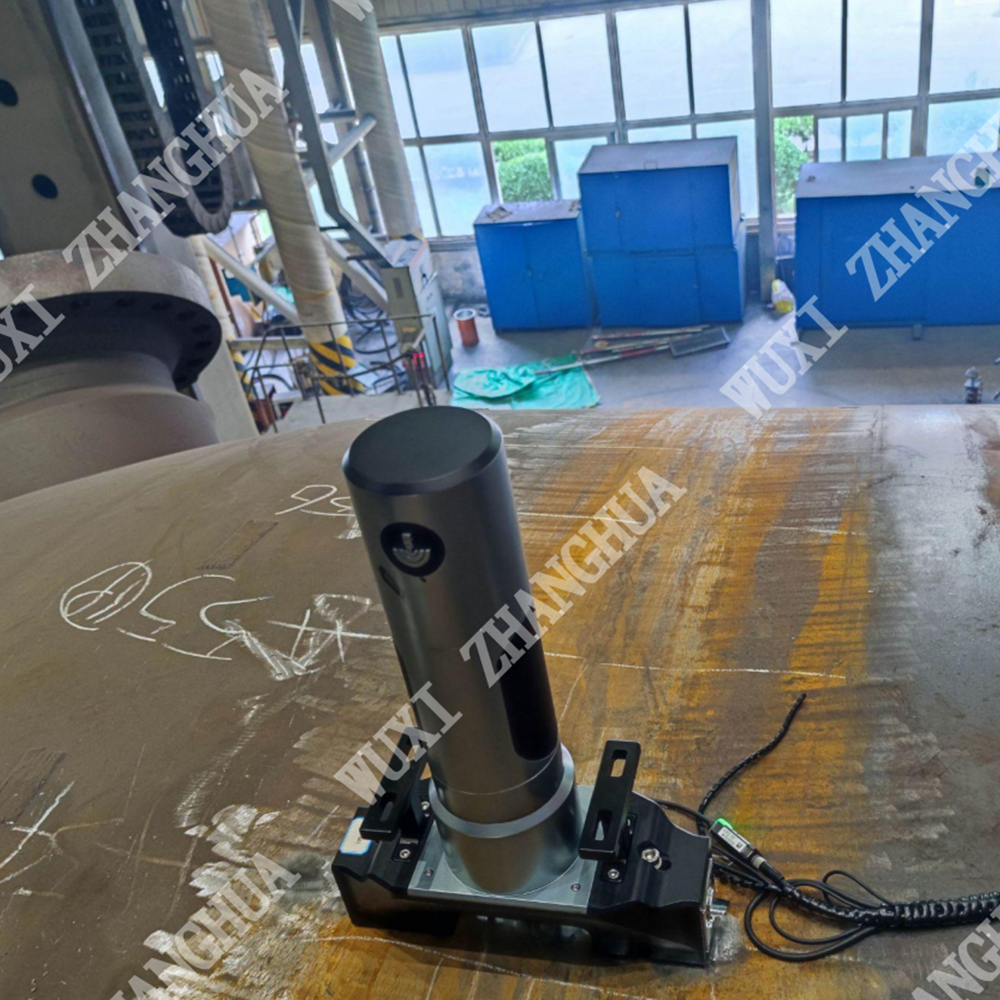

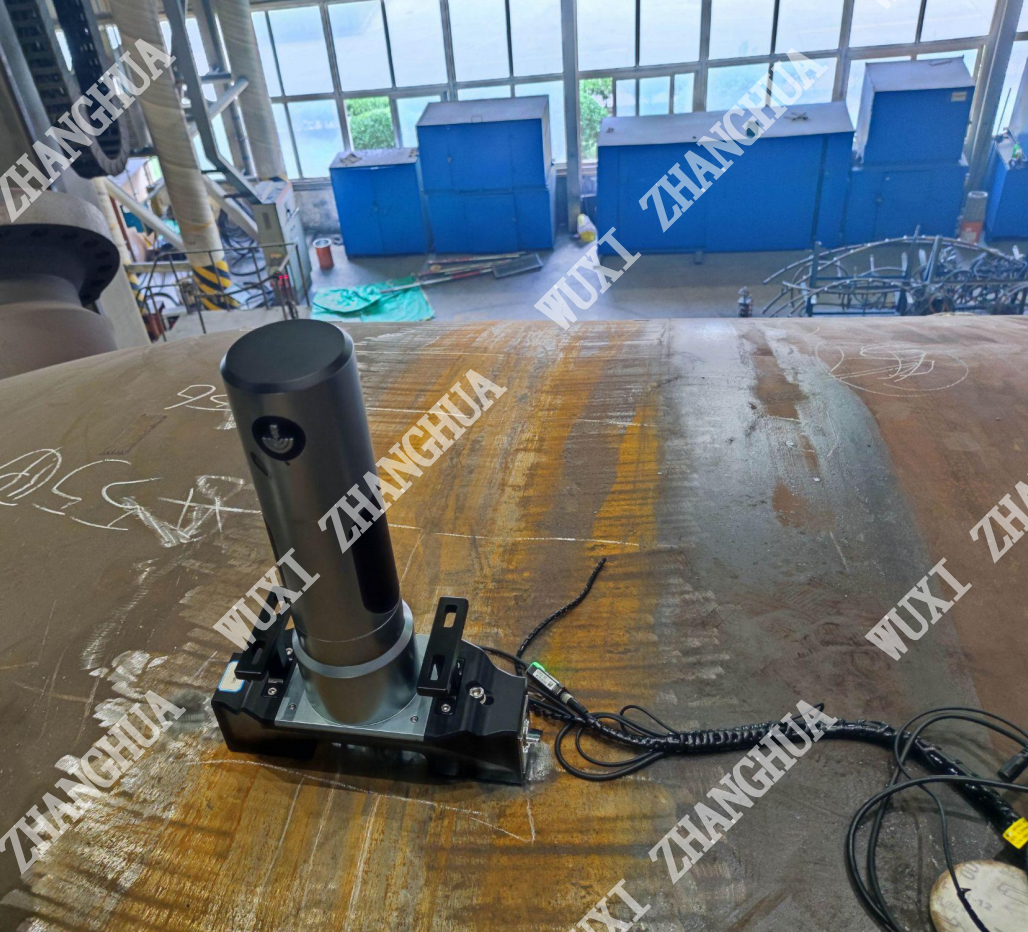

Portable Micro-Indentation Tester PMA-1010, widely used in machinery, electronics, aviation fields Portable Micro-Indentation Tester PMA-1010, portable design for on-site hardness testing Portable Micro-Indentation Tester PMA-1010, suitable for laboratory, on-site and other scenarios Portable Micro-Indentation Tester PMA-1010, small size for easy carrying and storage
