Portable Non-Destructive Weld Stress Tester for Pipe Girth Welds On-Site
Product Summary
The PMA-1010 Non-Destructive Weld Stress Tester is specifically designed for on-site measurement of axial and hoop residual stresses in pipe girth welds. Its portable and one-person operable design makes it ideal for complex welding sites, including high-altitude or remote areas. Using the indentation method, it provides rapid and accurate stress data without causing any damage to the pipe surface.
Key Features
Rapid On-Site Measurement: Simultaneously measures axial and hoop residual stresses in pipe girth welds, providing complete weld stress field evaluation in minutes.
Portable and One-Person Operable: Lightweight design allows easy handling in complex welding sites like high-altitude or remote areas.
Non-Destructive: Creates indentations of only a few microns, not affecting subsequent NDT and completely safe for operators and the environment with no ionizing radiation risk.
Insensitive to Surface Conditions: Insensitive to weld reinforcement or undercuts, requiring no complex surface preparation.
High Data Acquisition Rate: 100 Hz data acquisition rate ensures accurate capture of stress variations.
Technical Specifications
Parameter
Value
Maximum Load
1000 N (Max)
Actuation Range
25 mm
Loading Speed
0.01~30 mm/min
Data Acquisition Rate
100 Hz
Rated Voltage of Motor
2.1 V
Rated Current of Motor
3 A
Wired/Wireless Power
220 V / 24 V
Testing Range
Macro-scale
Indentation Depth
60~120 μm
Models and Options
Model PMA-1010 is the standard portable configuration. Optional fixtures and software are available to adapt to various pipe diameters and site conditions.
Materials and Structure
The tester is compatible with a range of materials including cemented carbide, stainless steel, and aluminum alloy. Its robust structure is designed for durability in harsh industrial environments.
Applications
Ideal for petrochemical industry, energy and power industry, wind power and renewable energy industry, aerospace industry, pharmaceutical industry, fine chemical industry, new energy/new materials industry, and pesticide manufacturing industry. Specifically suited for in-service pressure piping and pressure vessel periodic inspection.
Case Study
Chemical Plant Application: A chemical plant used the PMA-1010 to test equipment, achieving stable operation over a 10-year period. The instrument provided fast and accurate results within minutes, demonstrating its reliability and efficiency.
FAQ
Q: Can the PMA-1010 measure both axial and hoop stresses simultaneously? A: Yes, the PMA-1010 rapidly measures axial and hoop residual stresses in pipe girth welds on site.
Q: Is surface preparation required before testing? A: No, the tester is insensitive to weld reinforcement or undercuts, so no complex surface preparation is needed.
Q: What is the maximum load the device can apply? A: The maximum load is 1000 N, which is sufficient for macro-scale testing.
Q: Can it be used in high-altitude or remote locations? A: Yes, the portable and one-person operable design makes it ideal for such complex welding sites.
Q: Is there any risk of radiation? A: No, the device poses no ionizing radiation risk, making it completely safe for operators and the environment.
Q: What materials can be tested? A: The device is suitable for testing materials such as cemented carbide, stainless steel, and aluminum alloy.
Q: Does the indentation affect subsequent testing? A: Indentations are only a few microns deep and do not affect subsequent NDT.
Inquiry Information
For more details or to request a quote, please contact: Name: Vincent Zhang Email: vincent_zhang@zhanghuayaoji.com Tel: +86 181-1890-2332 WhatsApp: +1(805)869-8509

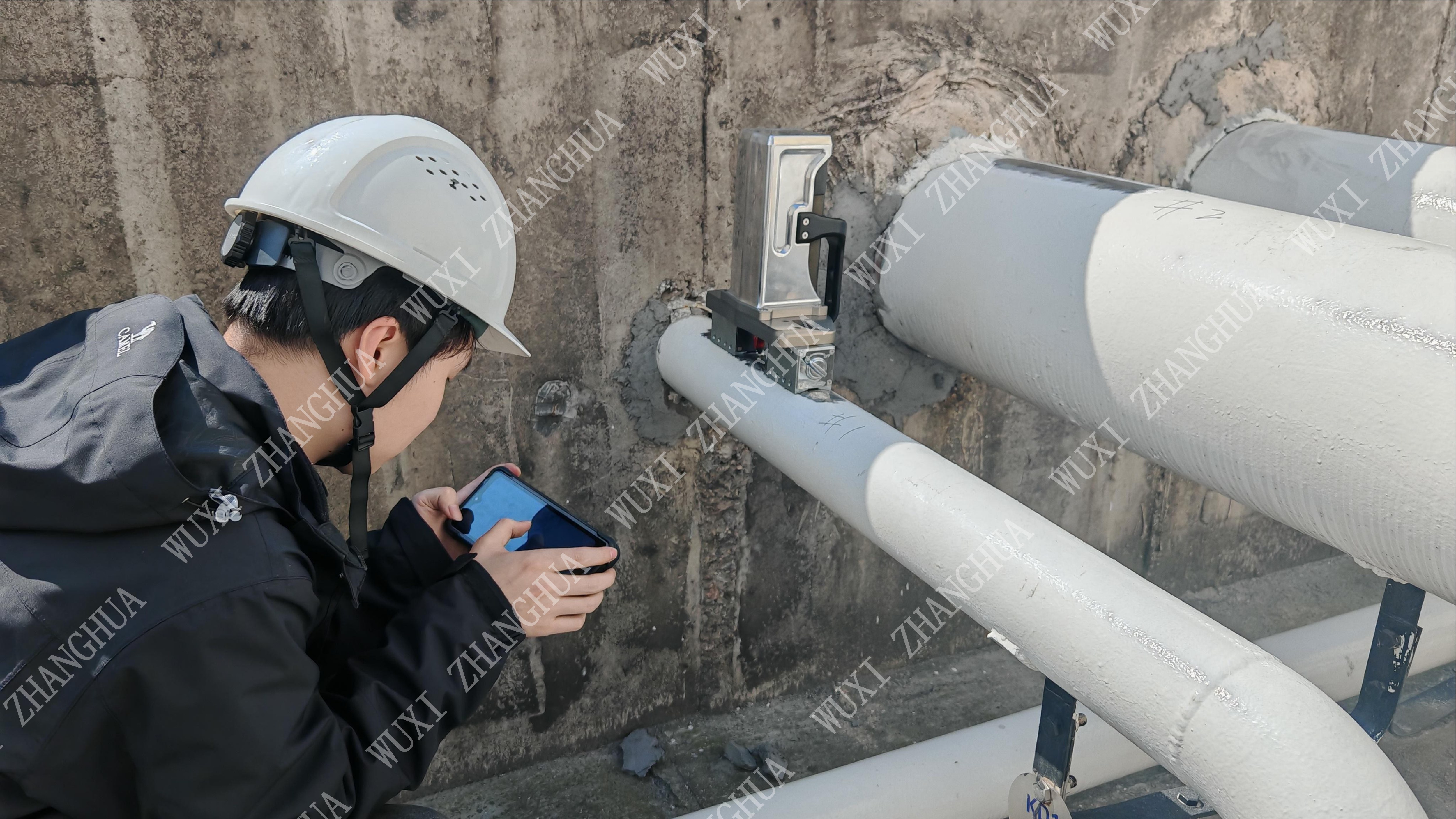

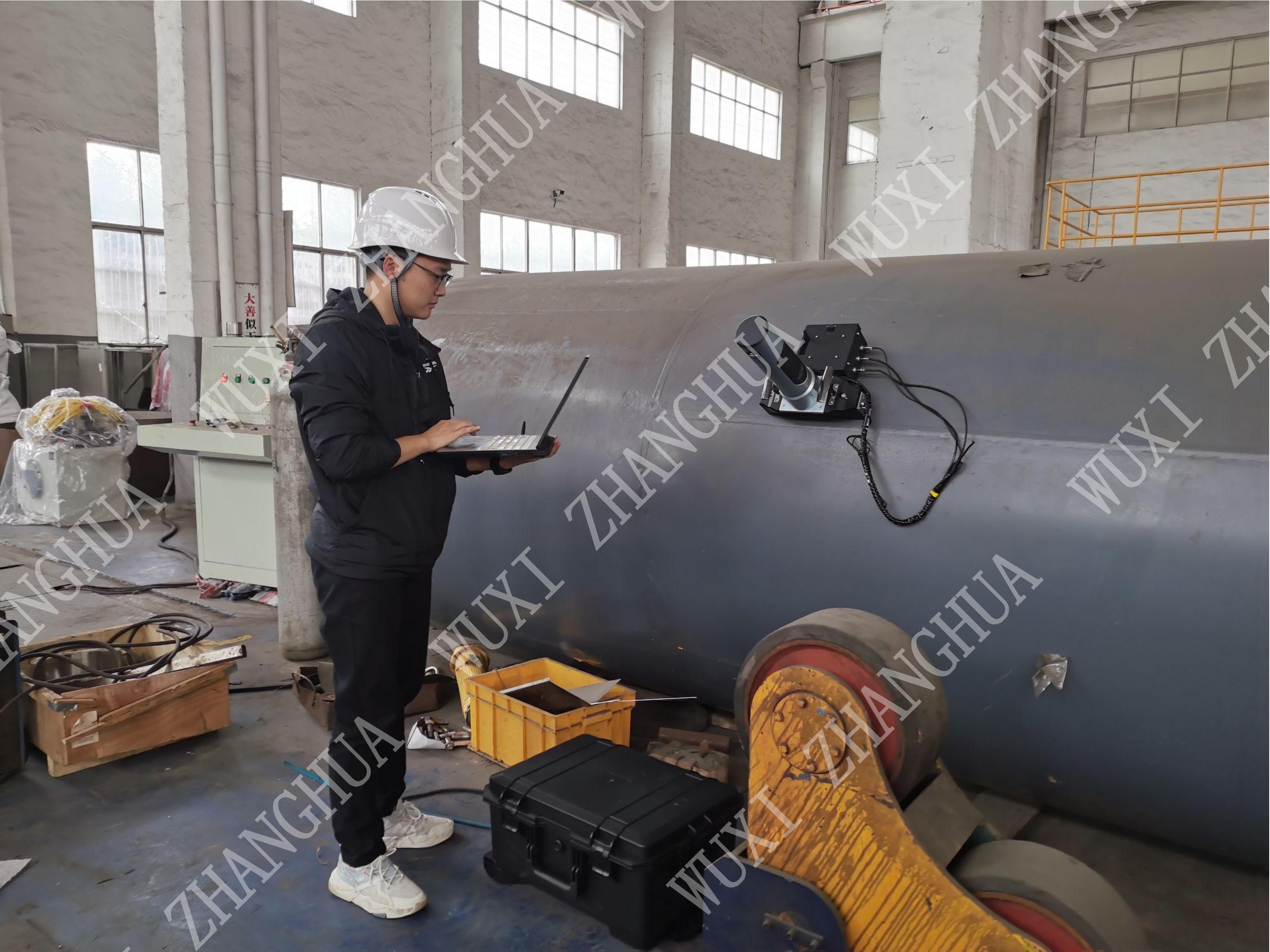

Fig.1 On-site pipe girth weld stress measurementFig.2 One-person portable operation in remote areaFig.3 Micro indentation for non-destructive testing
