Residual Stress Indentation Tester for Cold-Worked Stainless Steel Elbows and Tees

Name: "Residual Stress Indentation Tester for Cold-Worked Stainless Steel Elbows and Tees"
Rating: 5 (571 reviews)

SKU: 0664335551

Model: PMA-1010

Product Details

Residual Stress Indentation Tester – PMA-1010 for Cold-Worked Fittings

URL Slug: residual-stress-tester-cold-work-fittings

Product Summary

Model PMA-1010 is a portable nondestructive indentation tester that measures cold-work induced residual stress in stainless steel elbows and tees. This helps prevent stress corrosion cracking in petrochemical piping systems.

Key Features

Cold-Work Stress Detection: Measures stress introduced by cold forming processes.
Corrosion Prevention: Identifies areas prone to stress corrosion cracking.
Portable & Compact: Ideal for tight spaces like elbows and tees.
Wide Load Range: Up to 1000 N for various materials.
Fast Analysis: 100 Hz data rate for rapid assessment.

Technical Specifications
Parameter	Value
Maximum Load	1000 N
Actuation Range	25 mm
Loading Speed	0.01–30 mm/min
Data Acquisition Rate	100 Hz
Motor Ratings	2.1 V, 3 A
Power Source	220 V (wired) / 24 V (wireless)
Testing Range	Macro-scale
Indentation Depth	60–120 μm

Models and Options

PMA-1010 standard with interchangeable indenters for different surface curvatures.

Materials and Structure

Cemented carbide indenter, stainless steel body, aluminum alloy frame.

Applications

Petrochemical plants, particularly for piping systems with cold-worked stainless steel components. Also applicable in pharmaceutical and fine chemical industries.

Customization

Smaller nose pieces for tight radius fittings are available.

Case Study

Chemical Plant (China): Used for equipment testing, maintained stable operation over 10 years.

FAQ

Q: What is cold-work stress?
A: Stress generated during cold forming processes like bending or forging.

Q: How does it prevent cracking?
A: By detecting high-stress zones that could lead to stress corrosion cracking.

Q: Can it be used on curved surfaces?
A: Yes, with appropriate indenters.

Q: What is the testing time per point?
A: Very fast due to high loading speed.

Q: Does it require calibration?
A: Yes, periodic calibration is recommended as per manual.

Inquiry Information

For pricing and availability, contact Vincent Zhang: vincent_zhang@zhanghuayaoji.com or WhatsApp +1(805)869-8509.

Image Suggestions

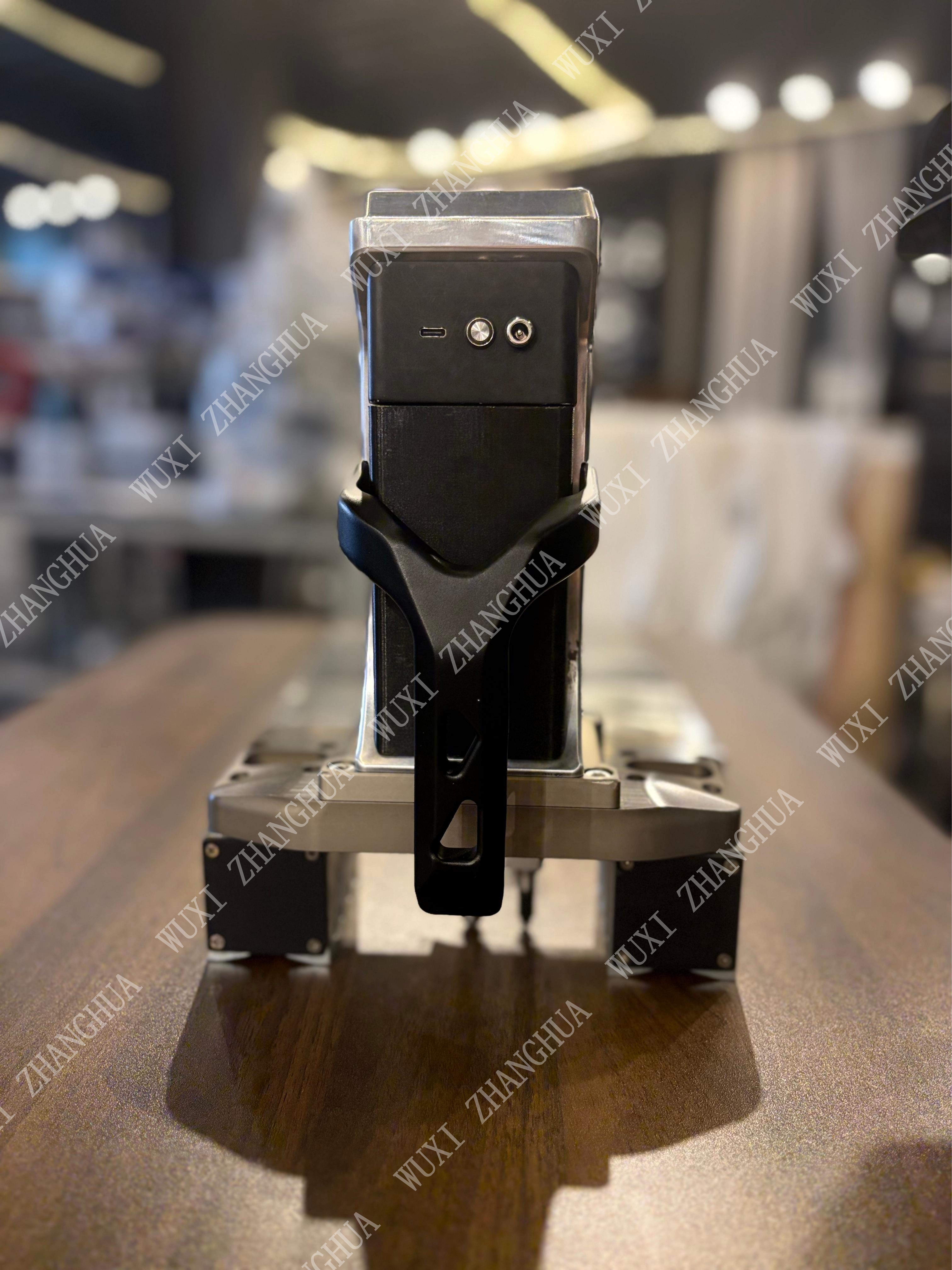

PMA-1010 measuring residual stress on stainless steel elbow
