Navigating the Critical Choice in High-Purity Manufacturing
The global semiconductor industry is in a relentless pursuit of miniaturization and performance, pushing the boundaries of material science. At the heart of this evolution are semiconductor precursors – the ultra-pure chemical compounds that form the foundational layers of chips. Their quality, defined by particle uniformity, crystal structure, and most critically, impurity levels at the PPB (parts per billion) scale, directly dictates the yield and performance of the final semiconductor device. Producing these materials is a delicate ballet of unit operations: Reacting, Crystallizing, Filtering, and Drying (RCFD). The choice of equipment to execute this sequence is not merely a procurement decision; it is a strategic commitment to product quality, operational safety, and competitive edge.
For engineers and project managers tasked with specifying equipment, the landscape can be confusing. From traditional separate vessels to modern integrated systems, how does one choose? This guide breaks down the key considerations, using the proven technologies from Wuxi Zhanghua Pharm & Chem Equipment Co., Ltd. as a benchmark, to help you select the optimal Reacting-Crystallizing-Filtering-Drying machine for your specific semiconductor precursor application.
Modern integrated RCFD systems consolidate multiple process steps into a single, contained unit, crucial for PPB-level purity.
Step 1: Define Your Process and Material Characteristics
Before looking at equipment, deeply understand your process.
- Material Nature: Is your precursor a High-Nickel Ternary Cathode Precursor (NCM Precursor), Lithium Carbonate (Li₂CO₃), or another specialty chemical? Is it corrosive, toxic/stimulating, heat-sensitive, or prone to oxidation? This dictates material of construction (e.g., Hastelloy for corrosion, special seals for containment).
- Process Sequence: Does your synthesis require a dedicated Reacting-Crystallizing-Filtering-Drying general process production line, or is it part of a multifunctional Reacting-Crystallizing-Filtering-Drying machine that handles multiple products? For R&D or small-scale production, a Reacting-Crystallizing-Filtering-Drying pilot production line is essential for scale-up studies.
- Critical Quality Attributes (CQAs): What are your non-negotiable specs? Particle size distribution (PSD), crystal polymorph, residual solvent (e.g., from LiPF6 solvent removal), and metallic impurity levels. Equipment that offers precise control over temperature, mixing, and drying kinetics is paramount.
Step 2: Evaluate Equipment Architecture: Traditional vs. Integrated
The core decision lies in choosing between a train of separate units or an integrated system.
| Feature | Traditional Multi-Unit Train | Integrated RCFD System (e.g., Zhanghua's ANFD/Double-Cone) |
|---|---|---|
| Contamination Risk | High. Multiple transfers between reactor, crystallizer, filter, and dryer expose material to atmosphere and potential contaminants. | Extremely Low. The entire process from reaction to dry powder occurs in one sealed vessel. This is critical for semiconductor precursors and HPAPI contained drying. |
| Process Efficiency | Lower. Long cycle times due to handling, cleaning, and heating/cooling of multiple vessels. | High. Eliminates transfer steps. Functions like an Agitated Nutsche Filter Dryer (ANFD) perform filtration, washing, and drying in-situ, slashing cycle time by up to 50%. |
| Solvent Recovery & EHS | Challenging. Open transfers lead to solvent loss (VOCs) and operator exposure risks, especially with toxic/stimulating material drying. | Superior. Fully closed system allows for near-total solvent recovery (>99.5%) and ensures operator safety, aligning with stringent EHS mandates. |
| Footprint & Automation | Large footprint, complex piping. Automation across disparate equipment is challenging and costly. | Compact. A single unit replaces several. Ideal for skid-mounted Reacting-Crystallizing-Filtering-Drying production systems. Inherently easier to automate with a single PLC control system. |
For semiconductor-grade purity where PPB-level contamination is unacceptable, the integrated approach is increasingly becoming the standard. Wuxi Zhanghua has demonstrated this with its RFD multi-functional equipment achieving breakthrough PPB-level residual control in hydrofluoric acid processing, a testament to the effectiveness of closed-system design.
Step 3: Match the Machine Type to Your Process Step
Even within integrated systems, different designs excel at different stages.
- For High-Efficiency Filtration & Washing: The Agitated Nutsche Filter Dryer (ANFD) is king. Its bottom filter plate allows for pressure or vacuum filtration, followed by efficient cake washing and smoothing. It's ideal for NCM precursor filtration or electronic chemical filtration where removing mother liquor impurities is critical. Zhanghua's ANFDs come with certifications like ATEX, PED, and CE, ensuring compliance for global projects.
- For Gentle Drying & Polymorph Control: Conical Vacuum Dryers (like the Nauta Conical Dryer or Orbital Single-Cone Screw Vacuum Dryer) provide gentle mixing under vacuum, perfect for heat-sensitive material drying and preserving crystal structure. They are excellent for final drying of API wet cake or sensitive pigments.
- For Continuous or High-Throughput Drying: Paddle Dryers or Spray Dryers may be considered for downstream processing, but for the integrated RCFD step, batch-based conical or ANFD systems offer superior control.
- For the Ultimate in Integration: Zhanghua's Double Cone Multifunctional Reactor/Crystallization/Purification/Drying Integrated System represents the pinnacle. It can perform reaction, multi-stage crystallization, sweating, and drying all in one rotatable vessel—a "single-vessel multi-step cycle" that is revolutionary for high-value, multi-product facilities.

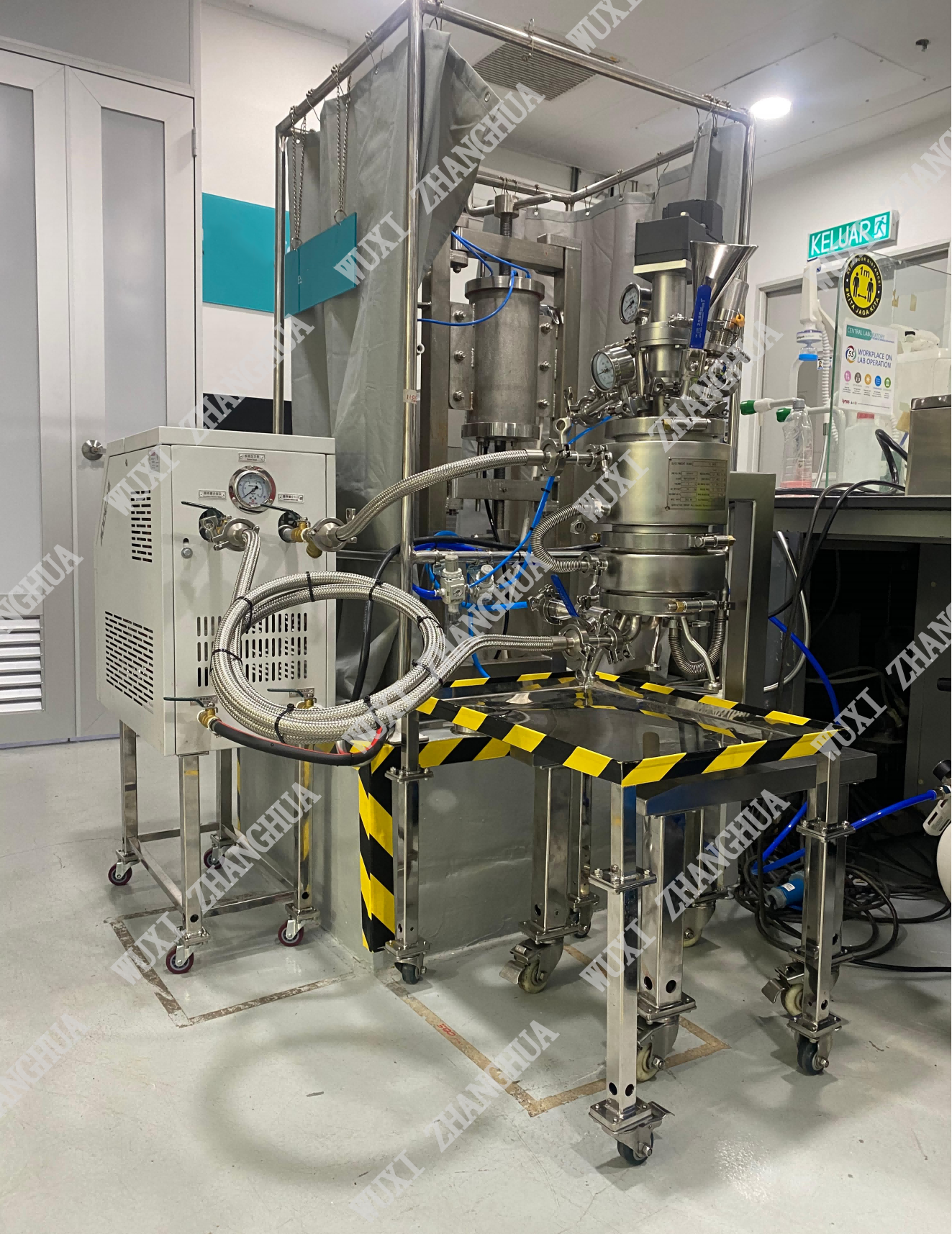

A CE-approved Agitated Nutsche Filter Dryer (ANFD) from Wuxi Zhanghua, designed for critical pharmaceutical and chemical applications.
Step 4: Scrutinize Technical Specifications and Compliance
Do not just look at the brochure capacity. Dive deep into the specs that matter for purity:
- Surface Finish: For semiconductor precursors, an electropolished interior with Ra ≤ 0.4 µm is often necessary to prevent particle adhesion and enable effective CIP (Clean-in-Place).
- Leak Tightness: Ask for helium leak test results. Systems for toxic/stimulating material reacting-crystallizing-filtering-drying should achieve leak rates better than 1×10⁻⁹ mbar·L/s.
- Material of Construction: 316L stainless steel is standard, but for highly corrosive products (e.g., involving HF or chlor-alkali industry products), confirm the availability of Hastelloy, titanium, or PTFE-lined options.
- Certifications: Ensure the supplier holds relevant international certifications. Wuxi Zhanghua Pharm & Chem Equipment Co., Ltd., for instance, possesses ASME, PED, ATEX, CE, and ISO 9001 certificates, which are not just paperwork but a guarantee of a standardized design and manufacturing quality system. Their Gold Medal from the International Exhibition of Inventions in Geneva further underscores their innovative capability.
- Control & Data Integrity: The control system should support recipe management, provide full data logging with audit trail (21 CFR Part 11 compliant if needed), and allow for integration with PAT (Process Analytical Technology) tools for real-time quality monitoring.
Step 5: Consider the Supplier's Expertise and Support
The best-designed machine is only as good as the team behind it.
- Industry Experience: Has the supplier worked on similar projects? Zhanghua's client list, including names in pharmaceuticals and chemicals, demonstrates cross-industry applicability. Their deep experience in Antibiotics and HPAPI processing translates directly to the stringent containment needs of semiconductor chemical production.
- Scale-up Capability: Can they provide a Reacting-Crystallizing-Filtering-Drying pilot production line for process development and ensure linear scale-up to production? Their use of CFD simulation and a complete pilot equipment series is a significant advantage.
- After-Sales & Validation Support: Look for suppliers who offer commissioning, training, and support for equipment qualification (IQ/OQ/PQ). The ability to provide a complete Reacting-Crystallizing-Filtering-Drying production solution, including auxiliary systems, is a mark of a true partner.
Conclusion: Making an Informed Investment
Selecting a Reacting-Crystallizing-Filtering-Drying machine for semiconductor precursor production is a complex but critical task. The trend is unequivocally moving towards integrated, contained, and automated systems that guarantee purity, safety, and efficiency. By systematically assessing your material properties, process needs, and the technical merits of different equipment types—from the versatile ANFD to the revolutionary Double Cone Integrated System—you can make a choice that safeguards your product quality and process economics.
As a leader with nearly 50 years of expertise, Wuxi Zhanghua Pharm & Chem Equipment Co., Ltd. embodies this integrated philosophy. Their equipment, backed by top-tier certifications and a proven track record in demanding applications, provides a reliable foundation for manufacturers aiming to produce the next generation of high-purity semiconductor precursors. To explore how their multifunctional Reacting-Crystallizing-Filtering-Drying machines can be tailored to your specific process, visit their website at https://www.zhanghua1976.com/About or contact their engineering team at Zhangpeijie@zhanghuayaoji.com / +86-13961802200.
